Aluminum housing
Design meets quality

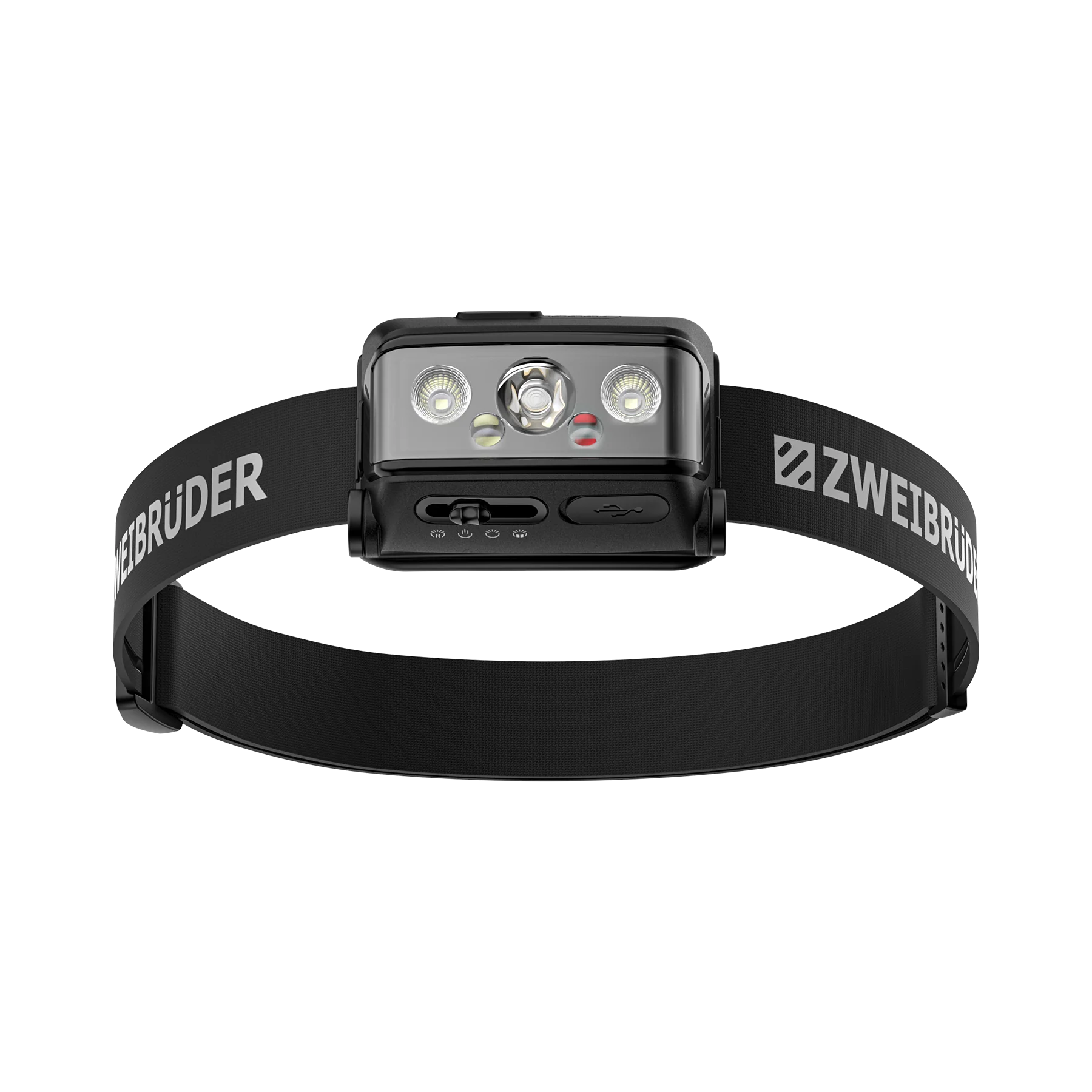

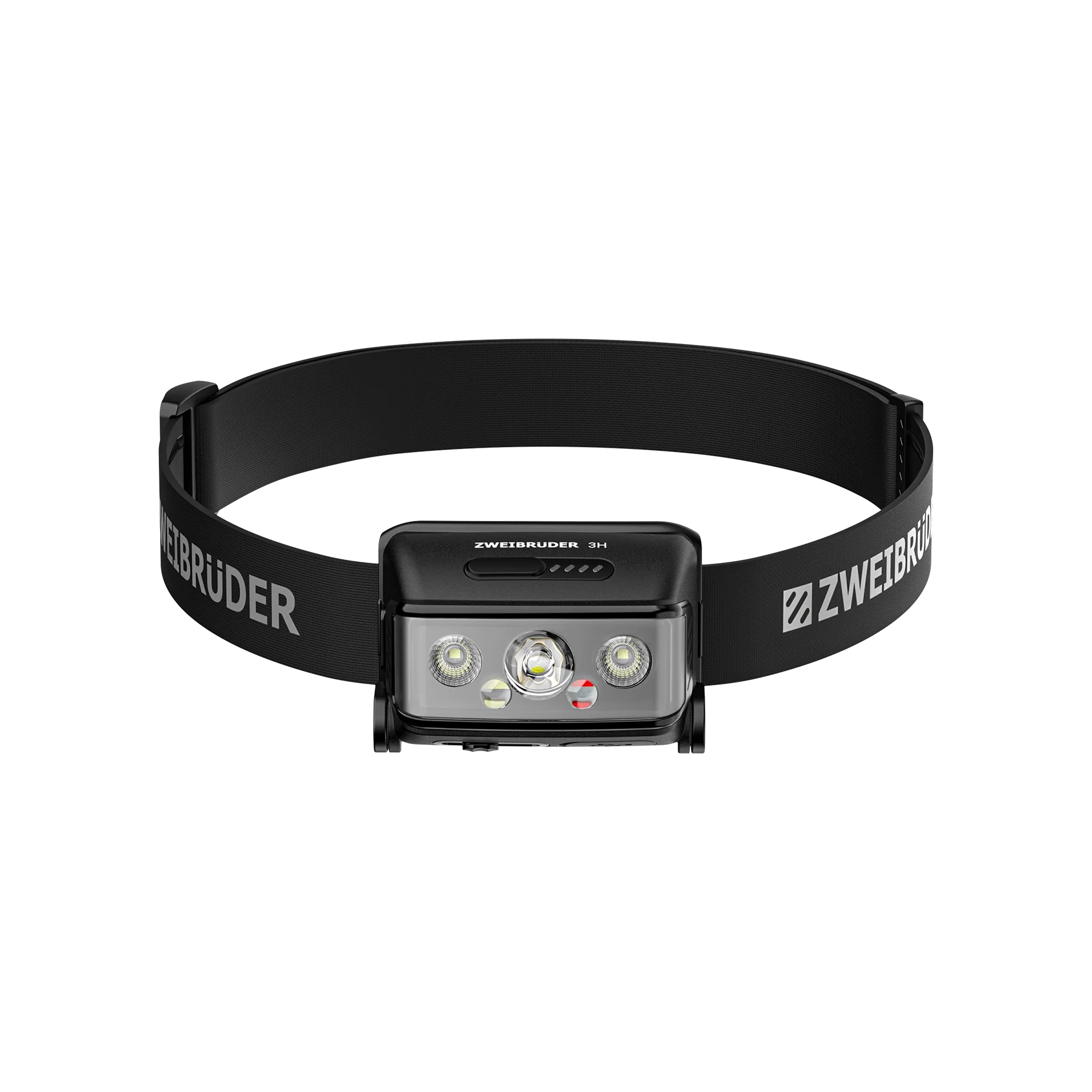

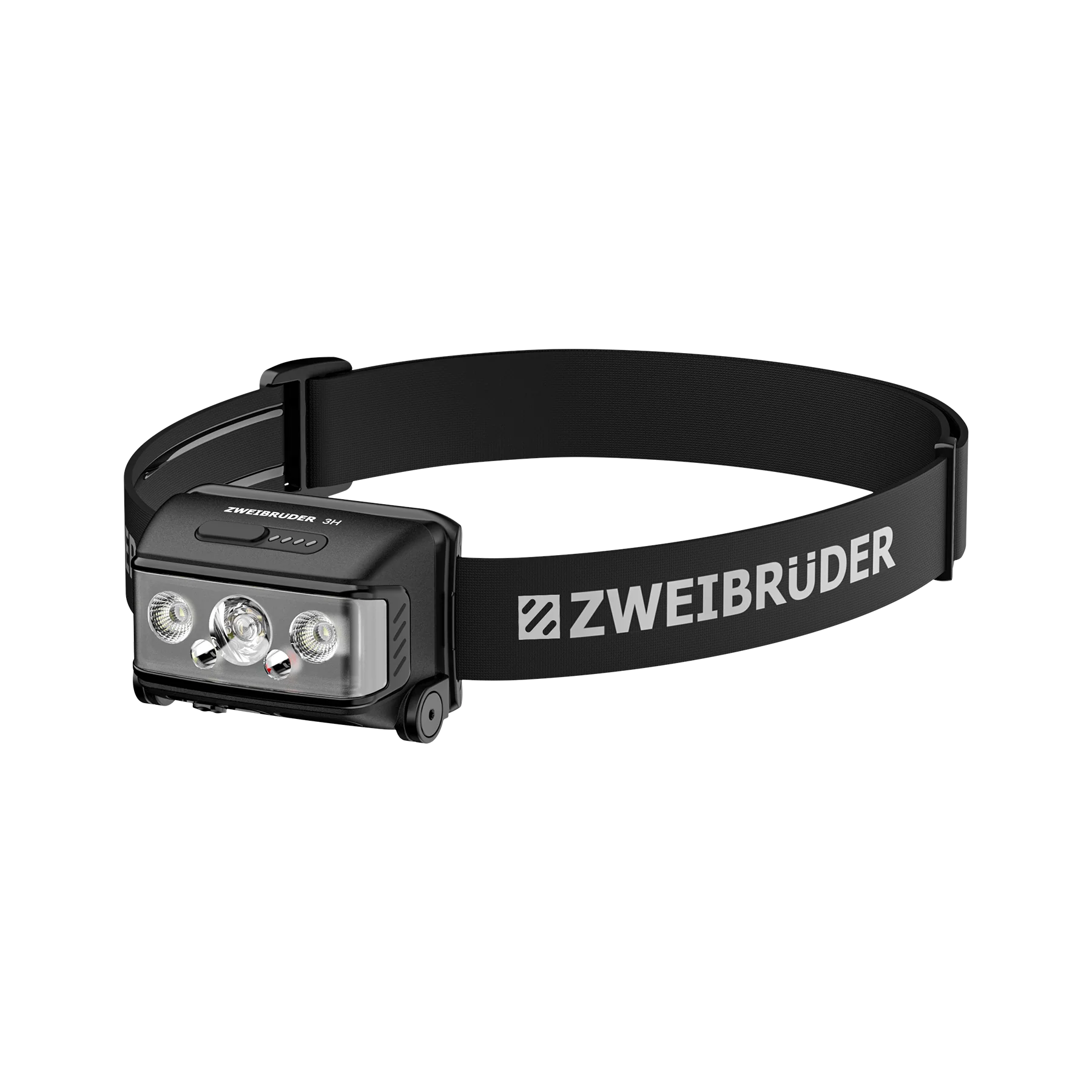

The ZB3H is the ideal headlamp for anyone who values a compact, lightweight and well-designed product.
A slide switch allows you to switch between the four light modes, while a separate switch is responsible for switching the light on and off and adjusting the brightness.
Whether you’re jogging at night, camping, doing repairs or gardening, the ZB3H headlamp is your perfect partner.
Precision through digital focusing
Multiple Optic Technology
The innovative Multiple Optic Technology (MOT) enables digital switching between high beam, floodlight, reading light and red light without moving parts.
The right light is available immediately
Focus Switch
With the integrated Focus Switch, you can select the desired light mode before switching on. This allows you to start with optimum lighting: High beam, floodlight, reading light or red light.
The right light
Four light modes
A. Floodlight
Wide, even illumination for close range
B. High beam
Precise, focused beam with maximum range
C. Reading light
Pleasant, glare-free light for close-up work and detailed tasks
D. Red light
Special light for night vision, hunting and tactical applications
Innovative heat dissipation
Overheating protection
Thanks to the integrated Heat Protection System (HPS), your torch remains reliable and optimally protected at all times. If the temperature rises to a critical level, the electronics reduce the power output.
Perfect lighting
Flicker-Free Light Function
Flicker-free light for clear vision: The Flicker-Free Light Function eliminates distracting PWM flicker and ensuring relaxed viewing. It is ideal for work, reading and filming.
Accessories
Features

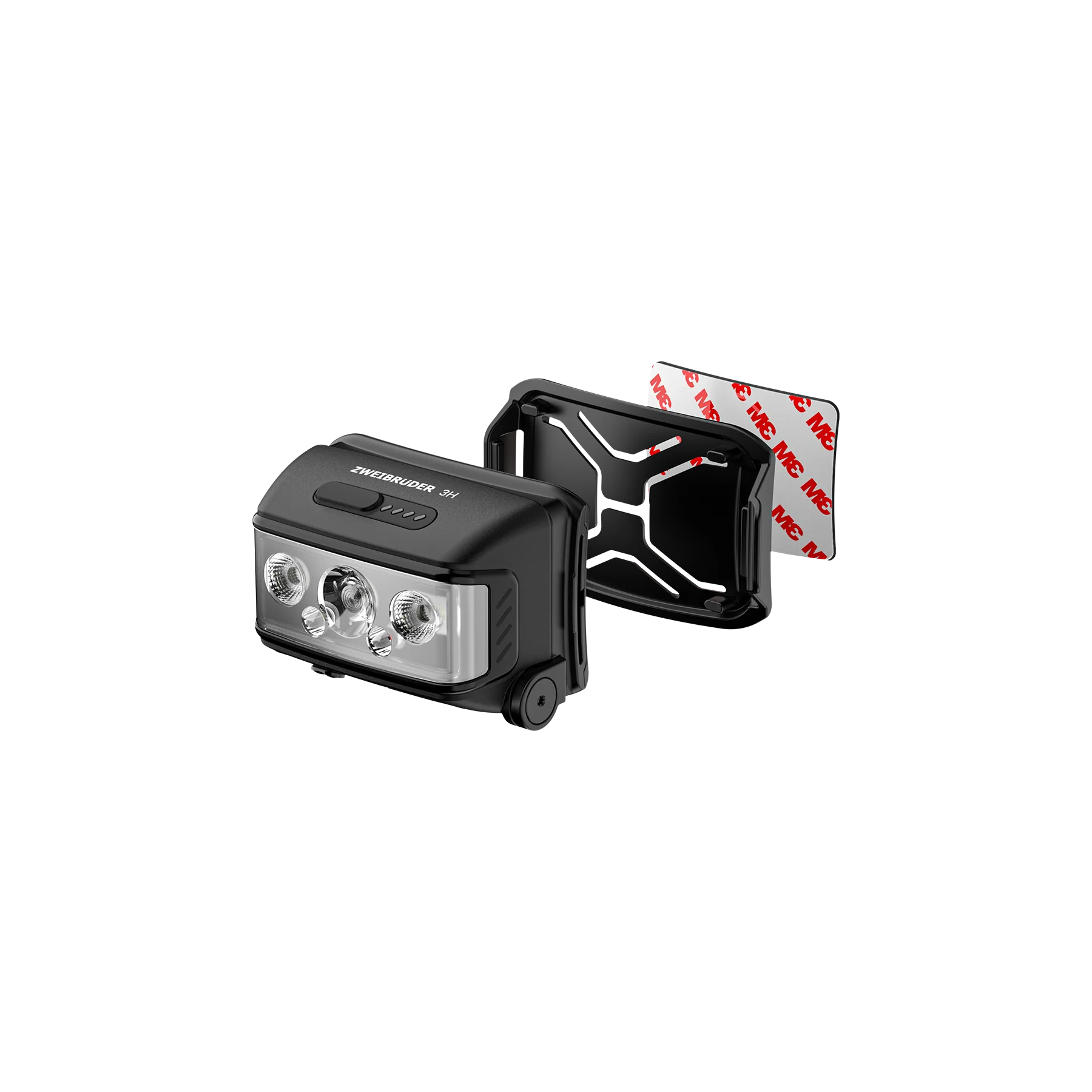

Practical helmet mount for secure attachment

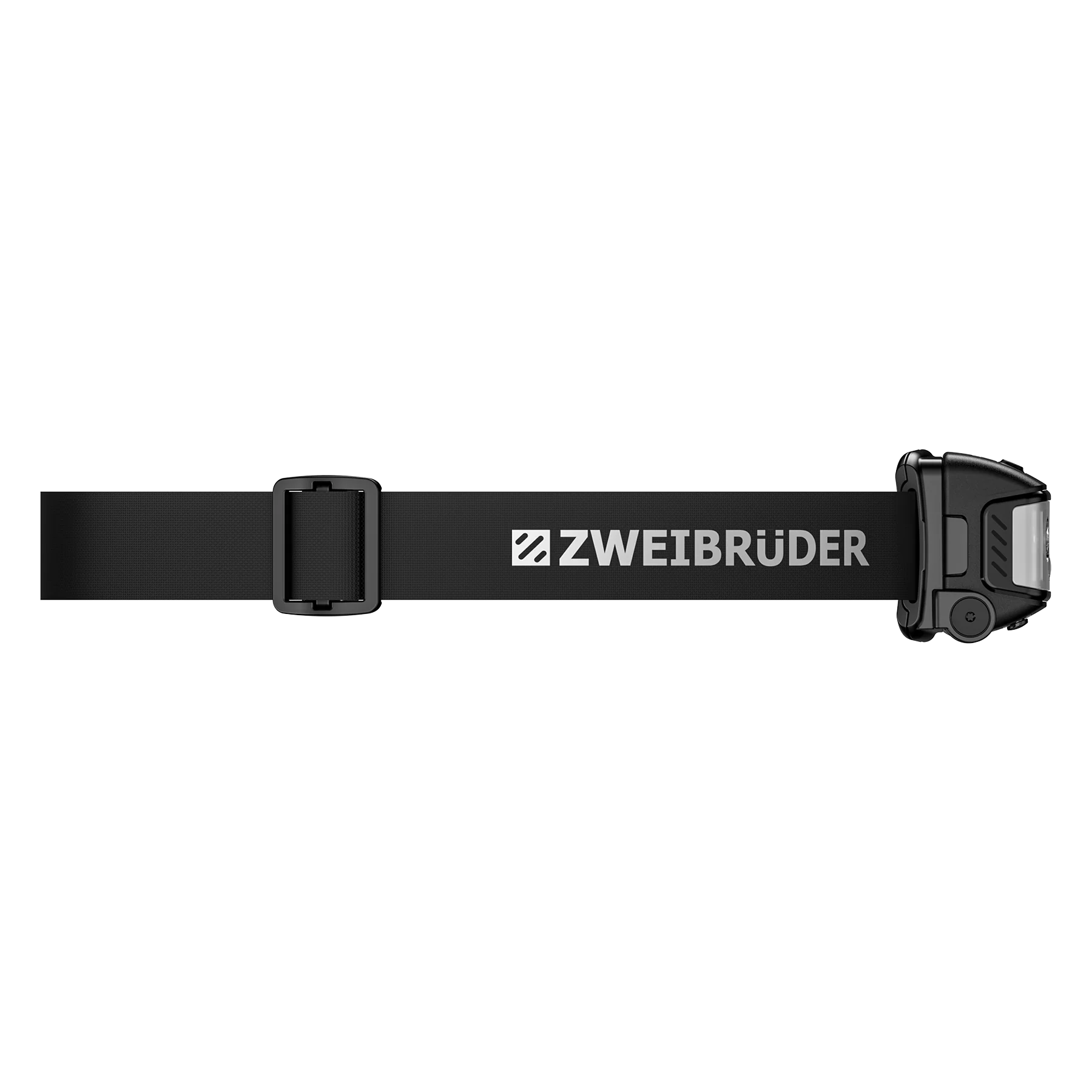

Removable, rubberised headband for a non-slip and comfortable fit

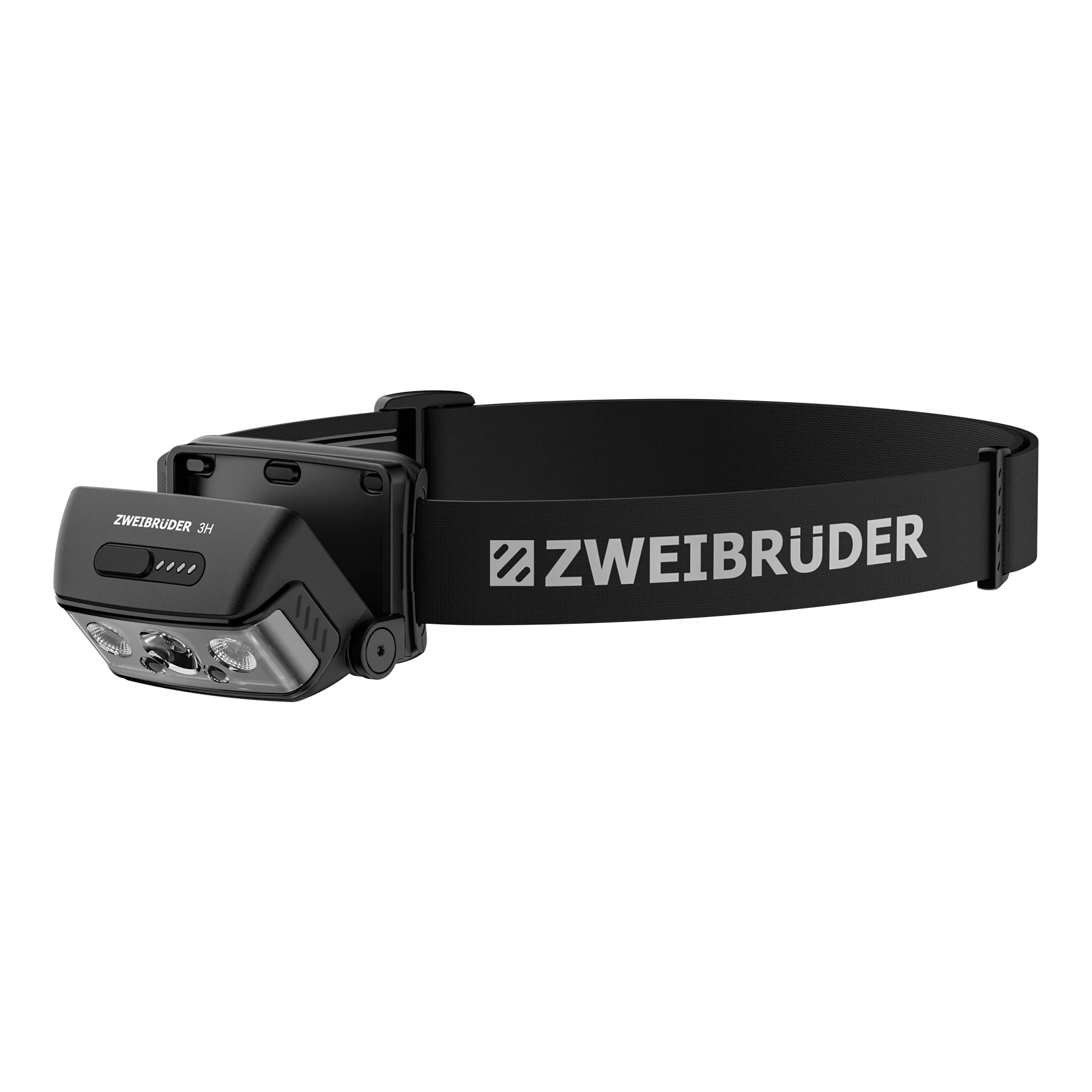

90° adjustable hinge for individual adjustment of the light angle
Power for every situation
Performance that impresses

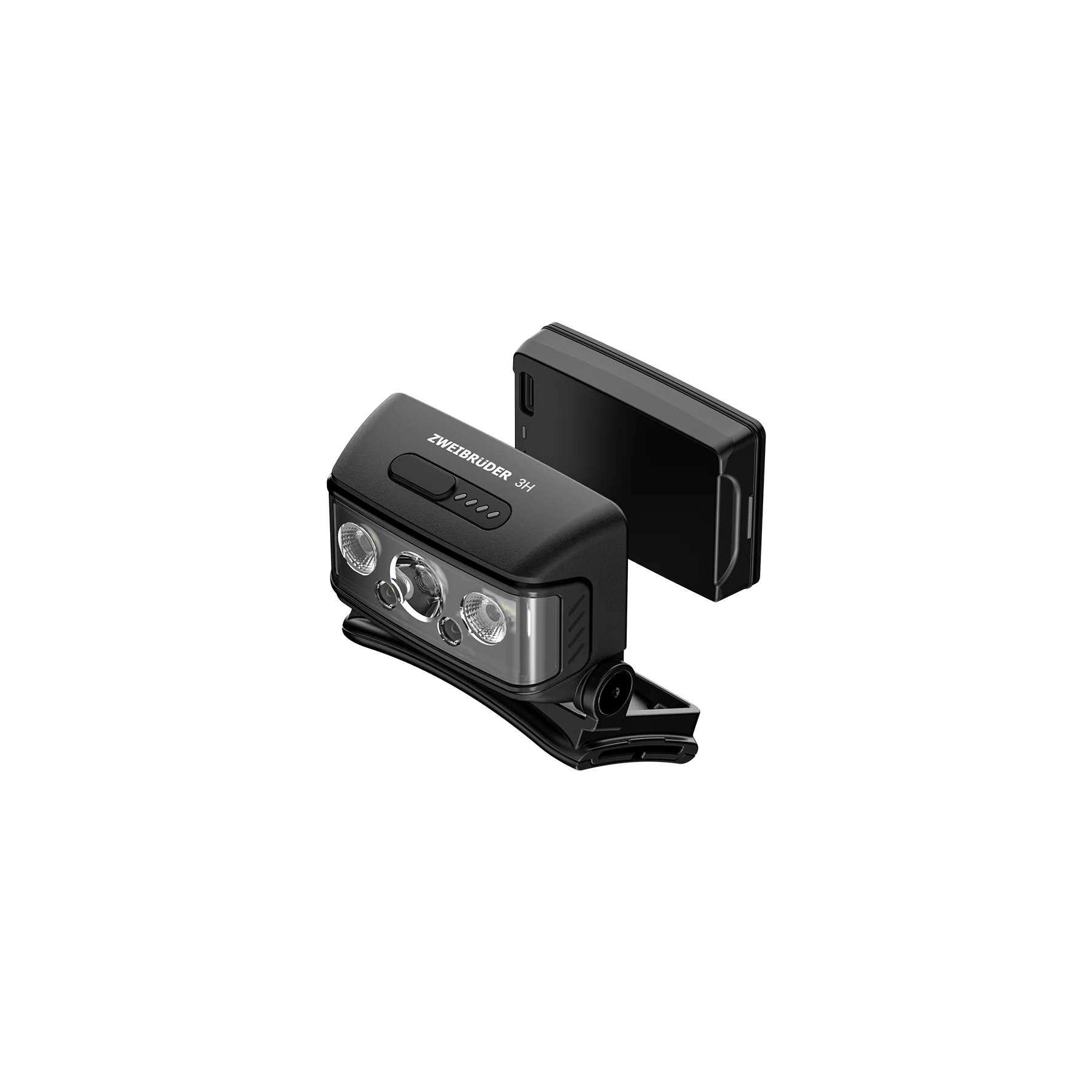

Powerful lithium polymer battery delivers plenty of energy in a compact design and low weight. The removable battery can be charged in the lamp or externally via USB-C.
100% charged in just 180 minutes.

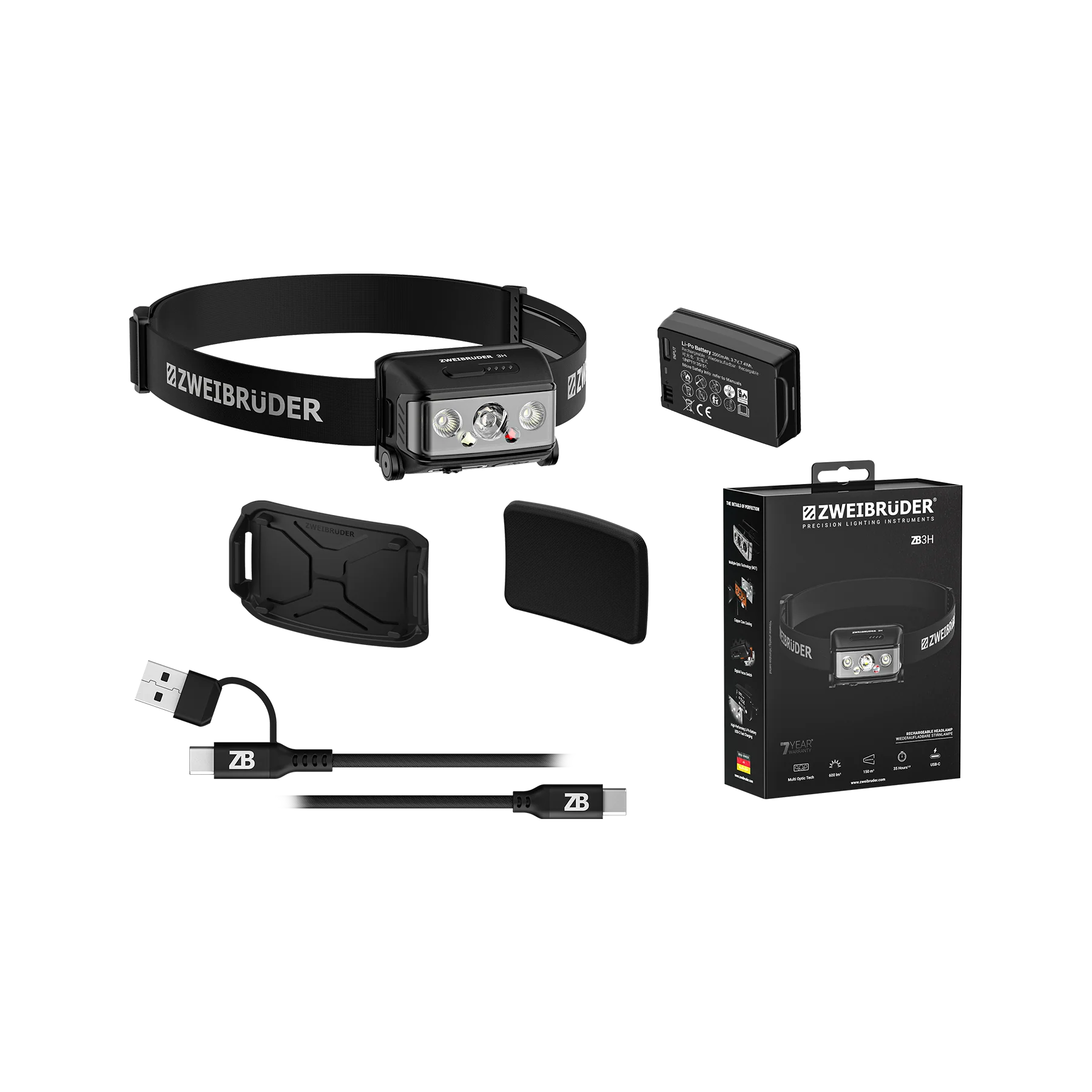

Scope of delivery
The lamp comes in a high-quality box including accessories.
Scope of delivery
ZB3H Headlamp
Lithium polymer rechargeable battery
USB-C charging cable
Helmet mount
Comfort pad
Guarantee
Sustainability starts with quality – 7-year manufacturer’s warranty with online registration within 12 weeks of purchase. More information
Product details
All details at a glance
- Product number –ZB-7403
- Product name – ZB3H
- Width headlamp – 66 mm
- Depth headlamp – 36 mm
- Anodizing – Premium matt
- Color – Black
- Drop height – 2 m
- Impact resistance – IK07
- Charging temperature0 – – 25 °C
- Operating temperature – -10 – 40 °C
- Energy status indicator – Charging & capacity
- Focus Function (slider, rotary knob or digital) – Yes / Digital
- SwitchFocus – + Power Switch
- Beam angle20° – – 70°
- Certification – CE, UKCA, FCC
- Scope of delivery – ZB3H Headlamp, Lithium polymer rechargeable battery, USB-C charging cable, Helmet mount, Comfort pad
- Rechargeable – Yes
- Battery quantity – 1
- Battery capacity – 2000 mAh
- Charging time – 180 min
- Weight incl. batteries – 124 g
- IP class – IP67
- Power source – Lithium Polymer
- Color rendering index – CRI > 70
- Color temperature – 5700 K
- Material – Aluminum, Nylon, ABS, PC
- Battery type – Li-Po
- LED type – Nichia-1*NCSRE17AT, Nichia-3*NVSWE21AT, Luminus-1*SFT-25R
- Light output – 600 lm
